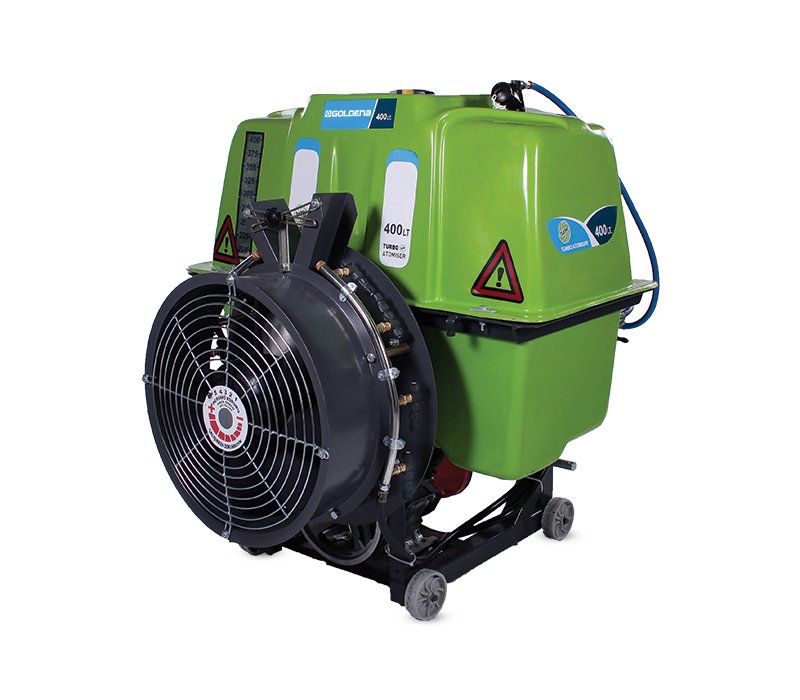

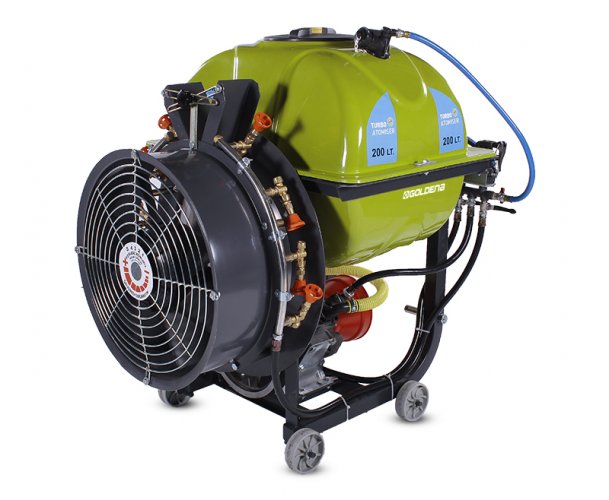

MOUNTED TURBO ATOMIZER SPRAYERS

Turbo Atomizer Sprayers are used for all kinds of double-rows of trees, orchards, vineyards, beets, cotton, tobacco and gardens

Attached to tractor by three point linkage system and driven by 540 rpm PTO.

Produced from strengthened fiberglass or polyethylene plastic tanks optionally.

Pump is operated by power takeoff from tractor conveys pressuring pesticide to nozzles on fan.

Pressured chemical liquid is sprayed by adjustable nozzles around the fan by air circulation and any kind of tree can be disinfected.

By setting the angle and direction or by changing the plaque the nozzle on the fan, spraying distance and amount can be adjusted.

Single side and double side spraying can be adjusted by the distributor valve on the regulator

The air flow can be controlled by setting the direction of the propeller fan.

Turbo fan can mist to approximately 8-12 mt high.

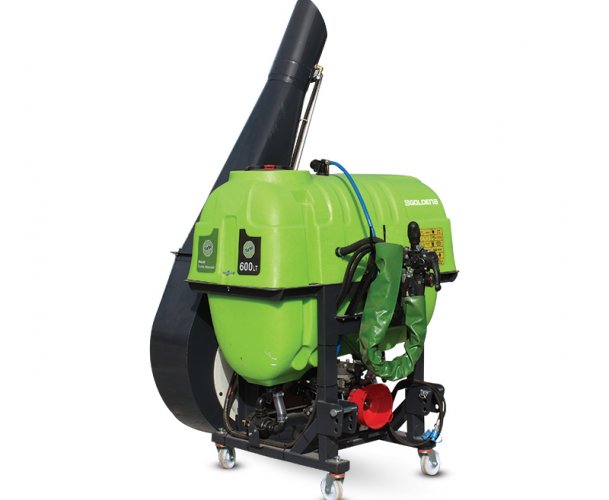

V Type, Robot Head or Canon head fan models are available.
