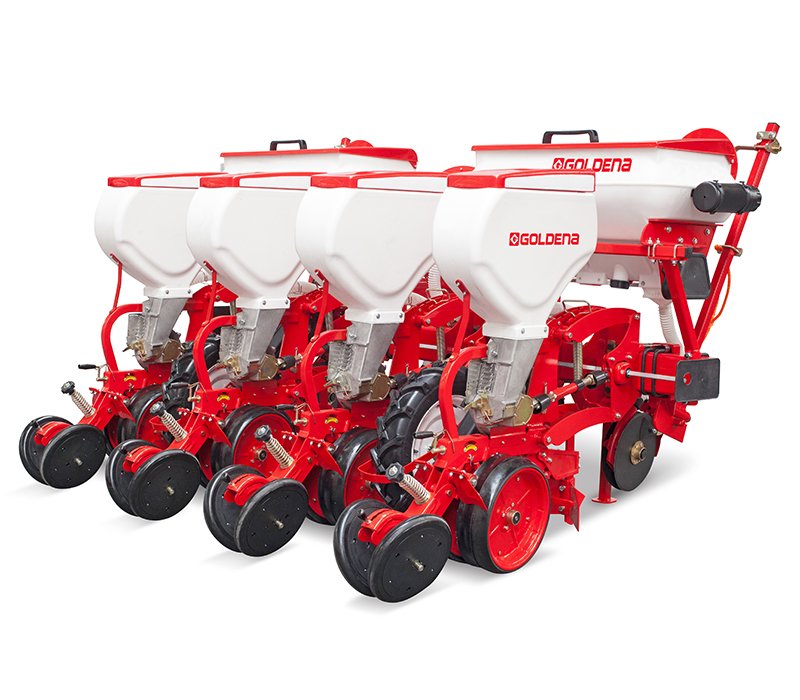

PNEUMATIC SEED DRILL

Pneumatic Seeders can perform precision sowing process of corn, sunflower, sugarbeet, cotton, soya, beet, onion, sweet melon, watermelon, groundnut etc.which needs to be sowed over row.

Pneumatic Seeders are produced as being with fertilizer unit and without fertilizer unit.

Pneumatic Seeder provides precision sowing all kind of seeds in wished sowing over  row distance.

It is produced as 2-4-6-8 rows and can be produced 5-7-12 rows according to inquiry.

The sowing bed is opened by the discs. Each sowing unit has two pcs discs made of private material.

The pneumatic seeder works easily in the lands with residue of straws for the sowing units being with discs and by the help of cutting discs fixed in front of the chassis.

The movement taken from the tires is directed to the sowing units by the means of shaft. As the result of this the sowing is done sensitively.

The depth setting can be controlled in all kind of land conditions by the means of rubber tires located on both sides of sowing units.

The seed is compressed by the help of V type compression tires on the rear of sowing unit. Rear compression tire pressure and angle is adjusted by the spring.

The V compression tires prevents the soil crusting.

The planters with telescopic chassis have transport width from 3.30 m to 3.50 m depending on row spacing.

The 6 and 7 row versions are available with 55 and 60 cm spacing for sunflowers and 70, 75 and 80 cm for maize.

MODEL	NUMBER  OF ROWS	TOTAL LENGTH (CHASSIS)	WIDTH	HEIGHT	ROW SPACE	SEED HOPPER CAPACITY	FERTILIZER HOPPER  CAPACITY	P.T.O.	NECESSARY POWER	WEIGHT with FERTILIZER UNIT
	pcs	mm	mm	mm	cm	dm3	dm3	Rpm	Min. HP	kg
GPN-4	4	2300	2800-3200	1600	45-70-75-95	35X4	160x2	540	60	1100
GPN-5	5	2300	3000-3200	1600	45-70-75-95	35X5	160x2	540	70	1200
GPN-6	6	2300	4000	1600	45-70-75-95	35X6	200x2	540	80	1400
GPN-8	8	2300	5600	1600	45-70-75-95	35X8	200x4	540	100	2000
