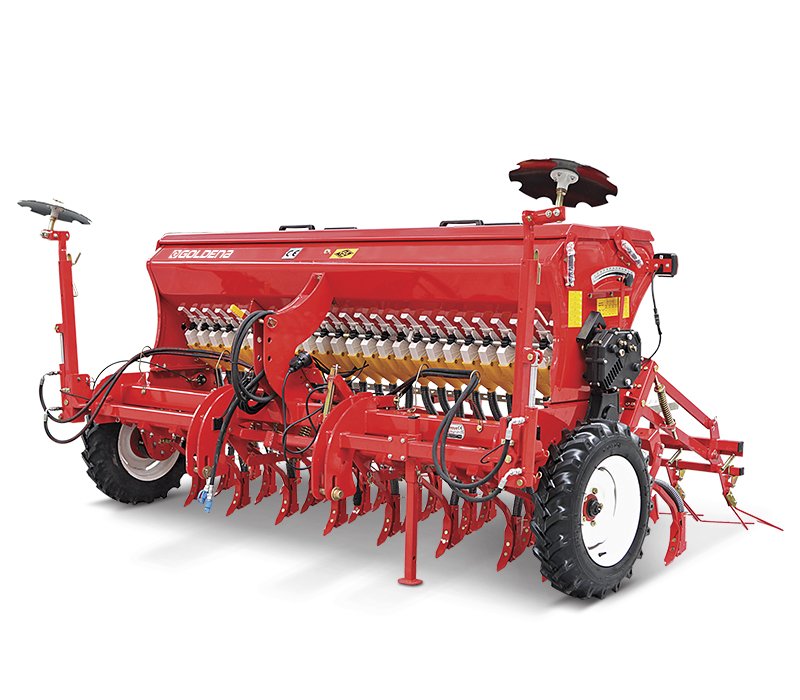

COMBINED UNIVERSAL CHISEL FOOT SEEDER
Universal Seeders seeds all kind of grains and animal feed seeds such as wheat, barley, rye, oat, pea, soya,alfa-alfa seed etc. and pulses such as lentil, chickpea etc.
The seeding norm can be adjusted. The seeding can be done on three rows lines by the means of chisel foots.
The seed volume can be adjusted before the seeding. Machine has marking unit.
The seeding feet pressure settings can be done independently.
Plain and sloppy lands can be sow without any problem.
The seeding feets were designed as they can apply the similar pressure on the soil in all kind level of soil. So an uniform sowing can be done.
The spring tines are in three rows line. The spring tine feet pressure settings and sowing depth can be adjusted.
The sowing can be done on the surface or deeper in the soil by the means of depth adjusting mechanism.
Sowing space is 12 cm.
A sensitive and easier sowing is provided by the means of stepless transmission. Transmission works silent.
The rear covering are swallow type springs.
The hysraulic and electrical marking system is available.
It is produced with fertilizer and without fertilizer units.
|
MODEL
|
WORKING DEPTH
|
FEET QNTY.
|
SEED CAPACITY
|
FERTILIZER CAPACITY
|
APP. WEIGHT
|
WIDTH
|
LENGTH
|
HEIGHT
|
TIRES
|
NECC. POWER
|
|
mm
|
pcs.
|
lt
|
lt
|
kg
|
mm
|
mm
|
mm
|
|
HP
|
|
| GSC-21 | 2500 | 21 | 300 | 333 | 870 | 2540 | 2670 | 1640 | 600x16 | 60 |
| GSC-25 | 3000 | 25 | 365 | 407 | 985 | 2540 | 3150 | 1640 | 600x16 | 80 |
| GSC-29 | 3500 | 29 | 431 | 481 | 1115 | 2540 | 3650 | 1640 | 600x16 | 90 |
| GSC-T33 | 4000 | 33 | 498 | 555 | 1195 | 2540 | 4100 | 1640 | 600x16 | 100 |
