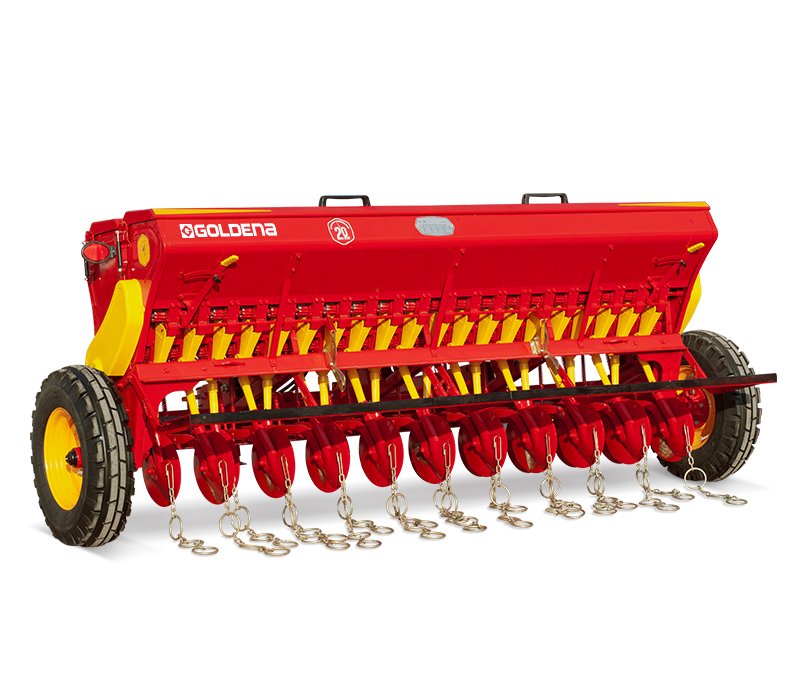

SEED DRILL
Seeds grains such as wheat, barley, rye, oat etc. and pulses such as lentil, chickpea etc.
Usablewith all kind of tractors and all kind of soil and land conditions.
The seeding feet can be produced as single disc, double disc and as chisel tine according to demand.
Can be used as trailed or hanging by three point linkage system.
Leaves the seeds and fertilizer in the soil in wished depth and quantity without interrupting.
Disc steel was made of special steeland they are housed by double ball bearings.
Easy use, adjustments are easy and long lifetime machine.
Seeding row distance is produced as (disc between space) 14,2 or 12,5 cm according to demand.
Different types of tires can be used as suitable to land conditions.
The seed and fertilizer feeding pulleys are produced in aluminium. Seeder tank bottom covers have spring calmps. Seed and fertilizer can be emptied easily.
The seed and fertilizer tank covers are separately independent from each other.
Seeders are painted by electrostatically.
|
Model
|
Length
|
Width
|
Height
|
Working Width
|
Seed-Box Length
|
Space Between Disc
|
Disc Depth
|
Fertilizer Box Volume
|
Seed Box Volume
|
Net Weight
|
Necessary Power
|
Tire Size
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
dm³
|
dm³
|
kg
|
|
|
| GSD-12 | 2530 | 3270 | 1470 | 1704 | 1870 | 125 or 142 | 0-150 | 218 | 327 | 760 | Any Tractor | 6.00x16 |
| GSD-14 | 2810 | 3270 | 1470 | 1988 | 2150 | 125 or 142 | 0-150 | 245 | 370 | 850 | Any Tractor | 6.00x16 |
| GSD-16 | 3090 | 3270 | 1470 | 2272 | 2430 | 125 or 142 | 0-150 | 272 | 412 | 910 | Any Tractor | 6.00x16 |
| GSD-18 | 3370 | 3270 | 1470 | 2556 | 2710 | 125 or 142 | 0-150 | 300 | 456 | 1010 | Any Tractor | 7.50x16 |
| GSD-20 | 3660 | 3270 | 1470 | 2840 | 3000 | 125 or 142 | 0-150 | 327 | 500 | 1085 | Any Tractor | 7.50x16 |
| GSD-22 | 3940 | 3270 | 1470 | 3124 | 3280 | 125 or 142 | 0-150 | 354 | 542 | 1140 | Any Tractor | 7.50x16 |
| GSD-24 | 4220 | 3270 | 1470 | 3408 | 3560 | 125 or 142 | 0-150 | 381 | 584 | 1240 | Any Tractor | 7.50x16 |
| GSD-26 | 4510 | 3270 | 1470 | 3692 | 3850 | 125 or 142 | 0-150 | 408 | 626 | 1325 | Any Tractor | 7.50x16 |
| GSD-28 | 4636 | 3270 | 1470 | 3976 | 4130 | 125 or 142 | 0-150 | 435 | 668 | 1400 | Any Tractor | 7.50x16 |
