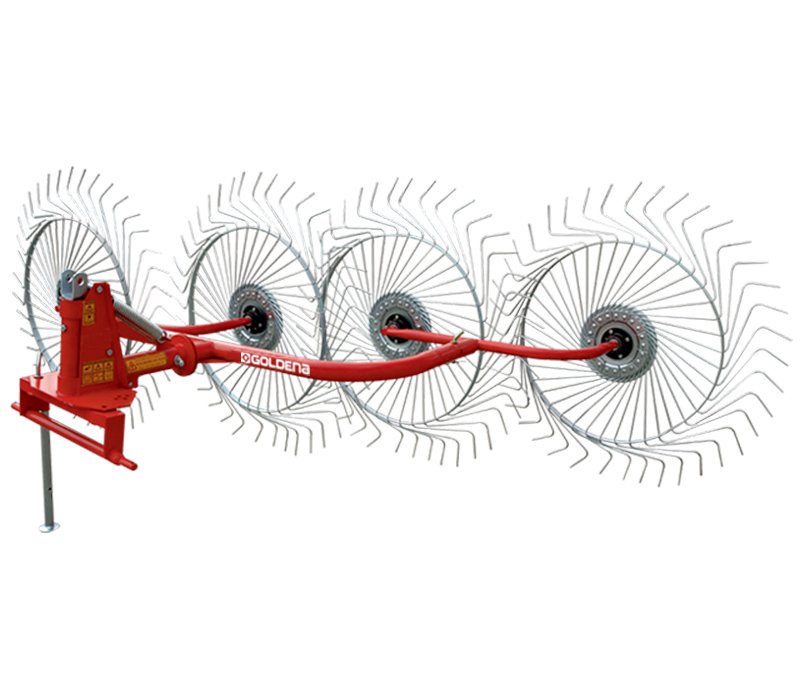

Hay Rake is easily mounted to each type of tractor by three point linkage system.

It provides a lot of time and labor saving.

Our machine offers an excellent performance on each kind of fields and it helps farmers to make work easier than previous.

Hay Rake is used for separating the green herb over the field to ventilate and for drying in a short time.

It can be used to collect the cut plant stalks (barley, wheat stalks) together to put this in a standard row. obtained extra gain.


Specifications Units GHR4 GHR5 GHR 8 GHR 10
Number of Drums pcs 4 5 8 10
Total Length mm 4000 5300 6700 7600
Total Width mm 2100 2300 3000 4100
Working Width mm 220-260 330-350 520-610 620-700
Number of Springs pcs 160 200 320 400
Required Power hp 30-50 40-60 45-90 45-90
Total Weight kg 175 215 360 590
