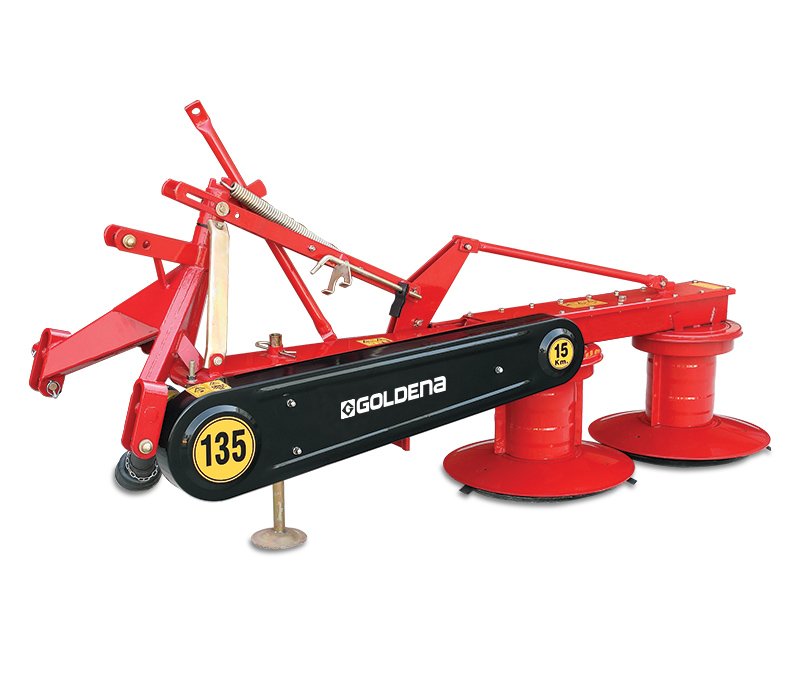

The Drum Grass Mowing machines are mounted to tractor via three-point linkage system and get its drive from the PTO at 540 rpm / transmit to the drums through belt pulley.

It is a grass mowing machine with free oscillating blades which are on the two drums rotating in reverse to each other. By this system it is cutting green feed plants (clover, grass plants, barley, oat, etc.) being opened by the effect of centrifugal force and leave on the surface of the field in collected position.

The Drum Mowers which are manufactured ideal for all sort of the farms are designed to use with the tractors having lower and medium horse powers.

Drum Mower leaves the product on the ground in a combined position by means of the lower drums those are rotate idle without damaging to the wet and bent products by using even a very low powered tractor. The Grass Mowing machine is protected against the damages which may occur due to some roughness on the field. The small design of the drum grass moving machines are suitable for working in vineyards, gardens and fields.


Specifications  GDW 135 GDW 165 GDW 195
Number of Drum 2 2 2
Number of Blades 6 6 8
Mowing Width 1.350 mm 1.650 mm 1.950 mm
Length 2.500 mm 2.950mm 3.200 mm
Width 900 mm 1.000mm 1.100 mm
Height 1.100 mm 1.100 mm 1.100 mm
Weight 310 kg 390 kg 450 kg
Operating Capacity 1.5 hour 1.8 hour 2.2 hour
Tractor Power 30 HP 40 HP 45 HP
P.T.O. 540 rpm 540 rpm 540 rpm
Operating Rate 8-15 km / hour 8-15 km / hour 8-15 km / hour
