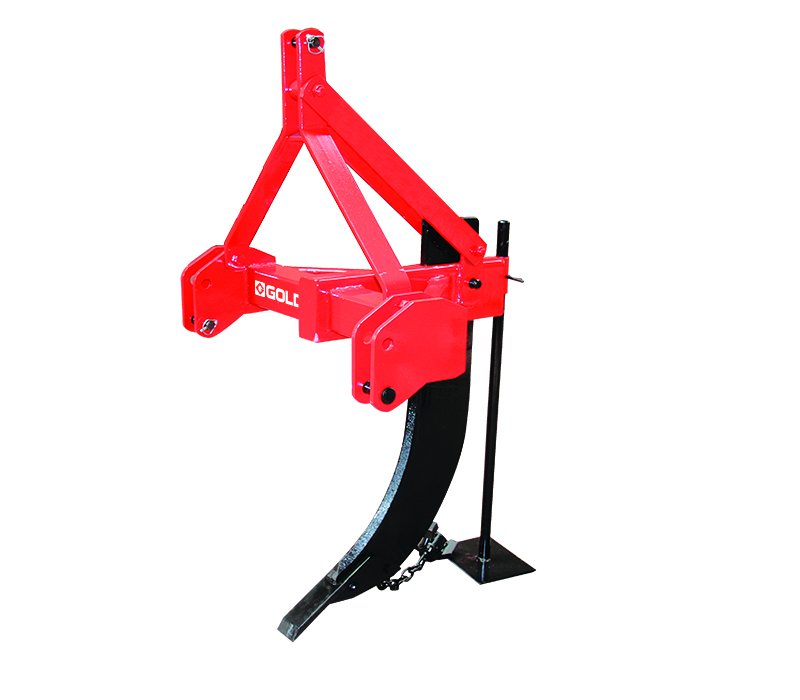

Subsoiler / Ripper  is a tractor mounted implement used to loosen and break up soil at depths below the level of a traditional ploughing. Most tractor mounted cultivation tools will break up and turn over surface soil to a depth of 15-20 cm while a subsoiler will break up and loosen soil to twice those depths. The subsoiler mounted to a tractor will reach depths of about 30-40 cm and typically have only one thin blade with a sharpened tip.

The subsoiler is a tillage tool which will improve growth in all crops where soil compaction is a problem. The design provides deep tillage, loosening soil depth is deeper than a tiller or plough is capable of reaching.

Subsoiler provides water go down easily and increasing water collecting deep inside the soil.

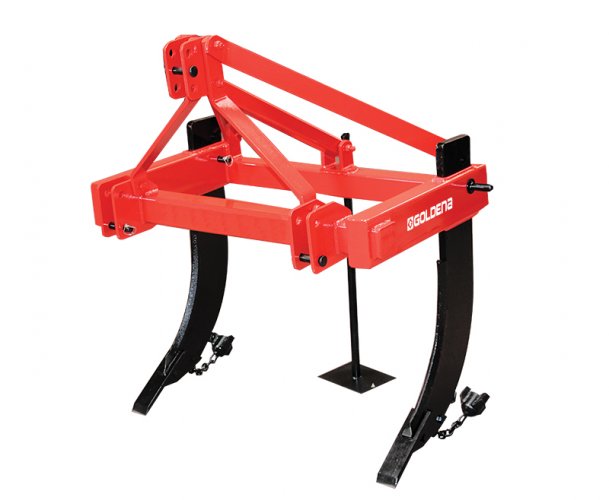

It can be produced as 1-2-3 and 4 tines.


Specifications Units GDK-1
Number of tines pcs 1
Clearance cm 63-85
Working depth cm 55-75
Total weight kg 440
Required power hp 70-80
Photo Galeri
