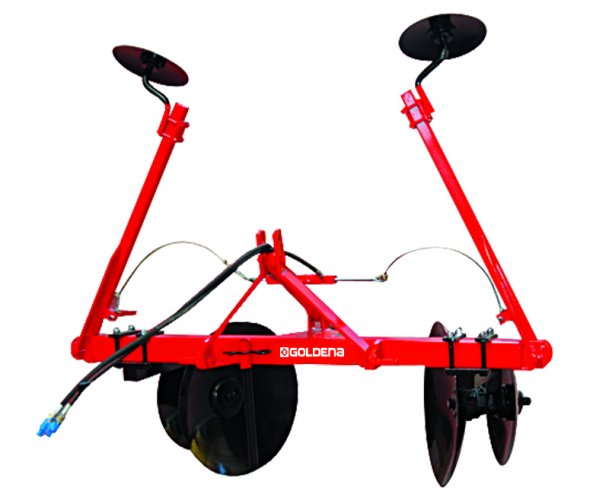

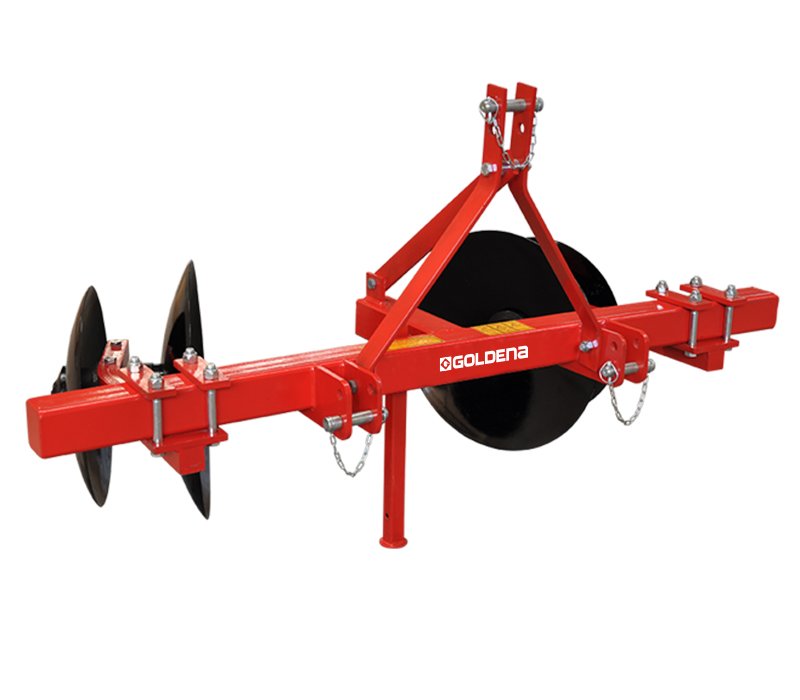

RIDGER ONE ROWS

Ridgers are mounted to tractors by three point linkage system and can be transport hydraulically easily.

Ridgers are used for the purpose of making ridges on the cultivated land.

The discs are 610mm and 510mm. The disc arms are mounted on 100*100mm chassis.

It makes single row ridge in wished width from 20cm to 90cm by the means of adjusted disc arms.

Specifications*	Unit	GDR-2
Number of Disc	pcs	2 Double Discs
Total Width	mm	2000
Total Length	mm	1100
Total Height	mm	1150
Working Depth	Max.(cm)	25-30
Working Width	mm	20-95
Space Between Bodies	mm	Adjustable
Disc diameter	mm	660-510 (ops560)
Required Power	hp	50-60
Total Weight	kg	220
