CHISEL
Chisel Plough is used in farming for initial cultivation of soil in preparation for sowing seed or planting to loosen or turn the soil.
The primary purpose of ploughing is to turn over the upper layer of the soil, bringing fresh nutrients to the surface, while burying weeds and the remains of previous crops and allowing them to break down.
Plowing and cultivating a soil homogenizes and modifies the upper 12 to 25 cm of the soil to form a plow layer.
The Chisel Plough – Ripper is mounted to tractor by three point linkage system and easy to transport.
Technical
|
Model
|
Number of Blades
|
Space Between Tines (cm)
|
Weight (kg)
|
Total Length (cm)
|
Total Width (cm)
|
Total Height (b) (cm)
|
Working Width (cm)
|
Power Requirement
|
| GCP-5 | 5 |
24,5
|
394 | 100 | 170 |
130
|
122,5 | 50-60 hp |
| GCP-7 | 7 | 435 | 100 | 220 | 171,5 | 70-80 hp | ||
| GCP-9 | 9 | 564 | 110 | 270 | 220,5 | 80-90 hp | ||
| GCP-11 | 11 | 695 | 120 | 320 | 269,5 | 90-100 hp | ||
| GCP-13 | 13 | 845 | 130 | 370 | 318,5 | 110-120 hp | ||
| GCP-15 | 15 | 1045 | 140 | 420 | 367,5 | 130-140 hp |

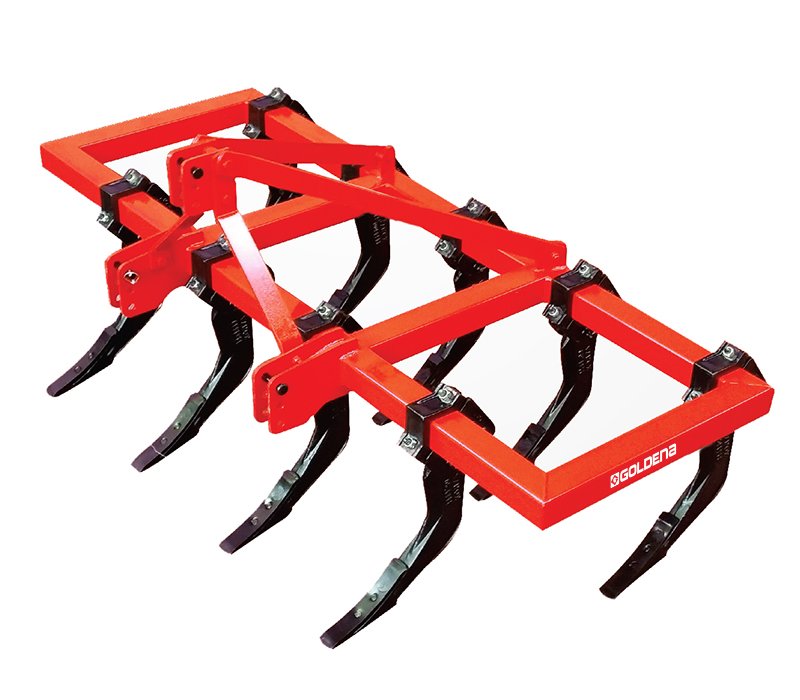

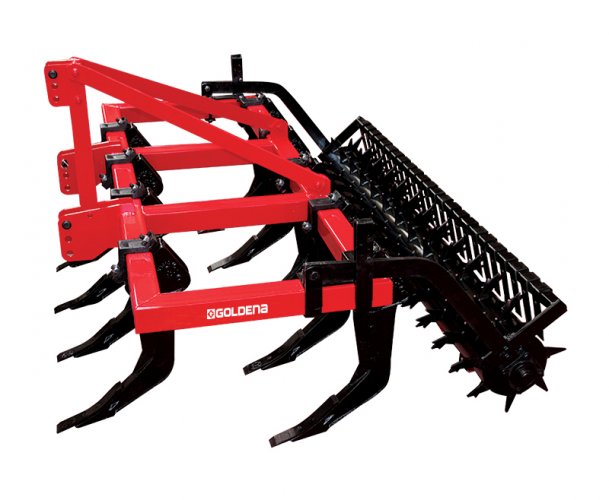

Photo Galeri
