GOBLE
A Harrow is ground leveling implement and is used to break the clod, process the soil to destroy the weeds finally.

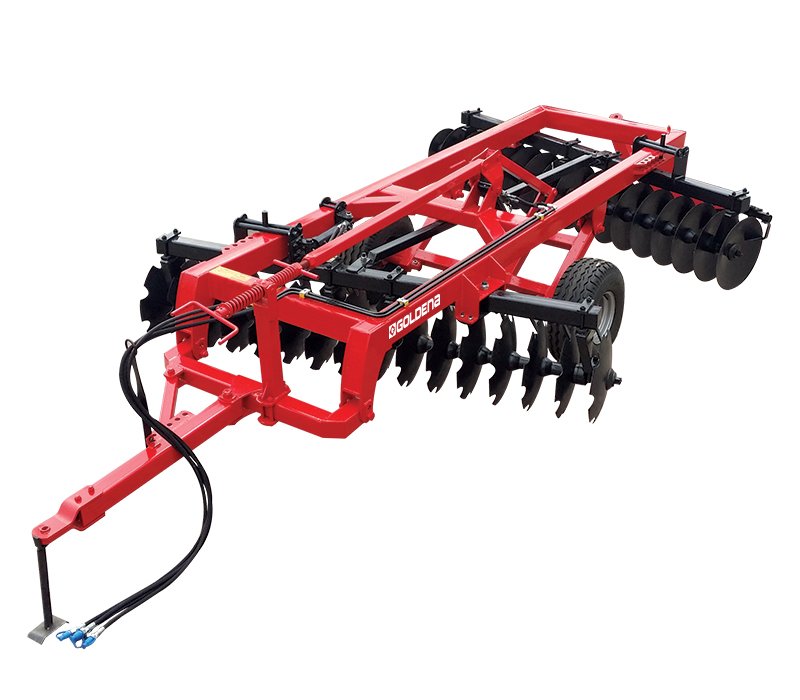

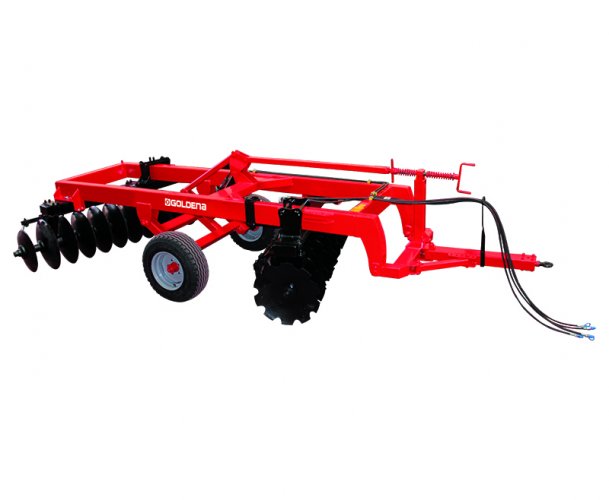

The Goble Disc Harrows have transport wheel which is worked upon mechanically or hydraulically when the Harrow needs to be transferred from the fields to the farmers place.
Our Goble disc Harrows are used to prepare a field for planting by breaking up dirt clods, leveling the surface of the field and packing the dirt so there are few air holes in which water can gather. The disc harrow can also be used to plant seed.
Goble Disc harrow battery angles can be adjusted and the depth of the discs are adjustable, as well. It is produced from 18 discs to 36 discs and the disc diameter can be produced from 510mm,560mm and 610mm. Privately can be produced 660mm discs,too.
Hydraulically controlled tire system makes easy us efor easier transporting and for depth adjusting.
Our disc harrow can be used after ploughing and before ploughing as suitable to purpose of preparing seed bed or airing and levelling the soil.
|
Normal Chassis
|
||||||
|
GODH-L
|
GODH-L
|
GODH-L
|
GODH-L
|
GODH-L
|
||
| Specifications | Unit | 16 | 18 | 20 | 22 | 24 |
| Disk Number | Pcs | 16 | 18 | 20 | 22 | 24 |
| Disc Diameter | mm |
560 x 4,5
|
||||
| Dist. Between Disc | cm |
22
|
||||
| No. Of Beds On Crank | Pcs | 4 | 6 | 8 | ||
| Working Width(A) | cm | 176 | 198 | 220 | 242 | 264 |
| Total Width (B) | cm | 200 | 222 | 244 | 266 | 288 |
| Total Length (C) | cm |
520
|
||||
| Total Height (D) | cm |
120
|
||||
| Frame Size | cm | 100x100X6 | 100x150x6 | |||
| Weight 560 mm Disc | Kg | 1385 | 1485 | 1560 | 1660 | 1785 |
| Weight 610 mm Disc | Kg | 1485 | 1585 | 1660 | 1760 | 1860 |
| Weight 660 mm Disc | Kg | 1580 | 1680 | 1780 | 1860 | 1960 |
| Min. Hp | Hp | 60-65 | 70-75 | 75-80 | 85-90 | 90-100 |
|
Big Chassis
|
||||||||||
|
GODH-B
|
GODH-B
|
GODH-B
|
GODH-B
|
GODH-B
|
GODH-B
|
GODH-B
|
GODH-B
|
GODH-B
|
||
| Specifications | Unit | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
| Disk Number | Pcs | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 |
| Disc Diameter | mm |
560 x 4,5
|
||||||||
| Dist. Between Disc | cm |
22
|
||||||||
| No. Of Beds On Crank | Pcs |
8
|
12 | |||||||
| Working Width(A) | cm | 220 | 242 | 264 | 286 | 308 | 330 | 352 | 374 | 396 |
| Total Width (B) | cm | 244 | 266 | 288 | 310 | 332 | 354 | 376 | 398 | 420 |
| Total Length (C) | cm |
520
|
527
|
562
|
||||||
| Total Height (D) | cm |
125
|
||||||||
| Frame Size | cm |
100x200x6
|
100x200x8
|
|||||||
| Weight 560 mm Disc | Kg | 1700 | 1750 | 1800 | 1860 | 1930 | 2010 | 2130 | 2280 | 2420 |
| Weight 610 mm Disc | Kg | 1750 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2450 | 1560 |
| Weight 660 mm Disc | Kg | 1800 | 1850 | 2000 | 2100 | 2200 | 2300 | 2470 | 2600 | 2700 |
| Min. Hp | Hp | 80-90 | 90-100 | 100-110 | 110-120 | 120-130 | 130-140 | 140-150 | 150-160 | 160-170 |
